CNC Vertical machining center - Linear guide ways
Model No.
HPA-10
Made in
Taiwan
Rapidest cutting feedrate 30,000mm/min vertical machining center
Spec
Type
Vertical, High Speed, 3 Axis
Spindle Taper
BT-40
Spindle Speed
15,000 rpm Direct Driven
Table Size
1,100 x 560 mm
Work Area
1,020 x 560 mm
Max. Table Load
900 kgs
X/Y/Z Travel
1,020/560/510 mm
Rapid Travel
x/y/z: 32/32/30 m/min.
Cutting Feedrate
x/y/z 1-30,000 mm/min.
ATC Type
24 pcs Arm Type
Spindle Motor (cont./30 min.)
7.5/11/15 kw
X/Y/Z Axis Motor
4/7/7 kw
Linear Guide Way Type
Roller Rail
Linear Guide Way Width
35/45/45 mm
Linear Guide Way Slider Quantity
2/2/2 pc
Linear Guide Way Track Quantity
2/2/2 pc
Machine Height
2,980 mm
Machine Space
4,200 x 2,350 mm
Machine Weight
6,800 kgs
Controller
Fanuc 0iMF plus 10.4"
Key Features

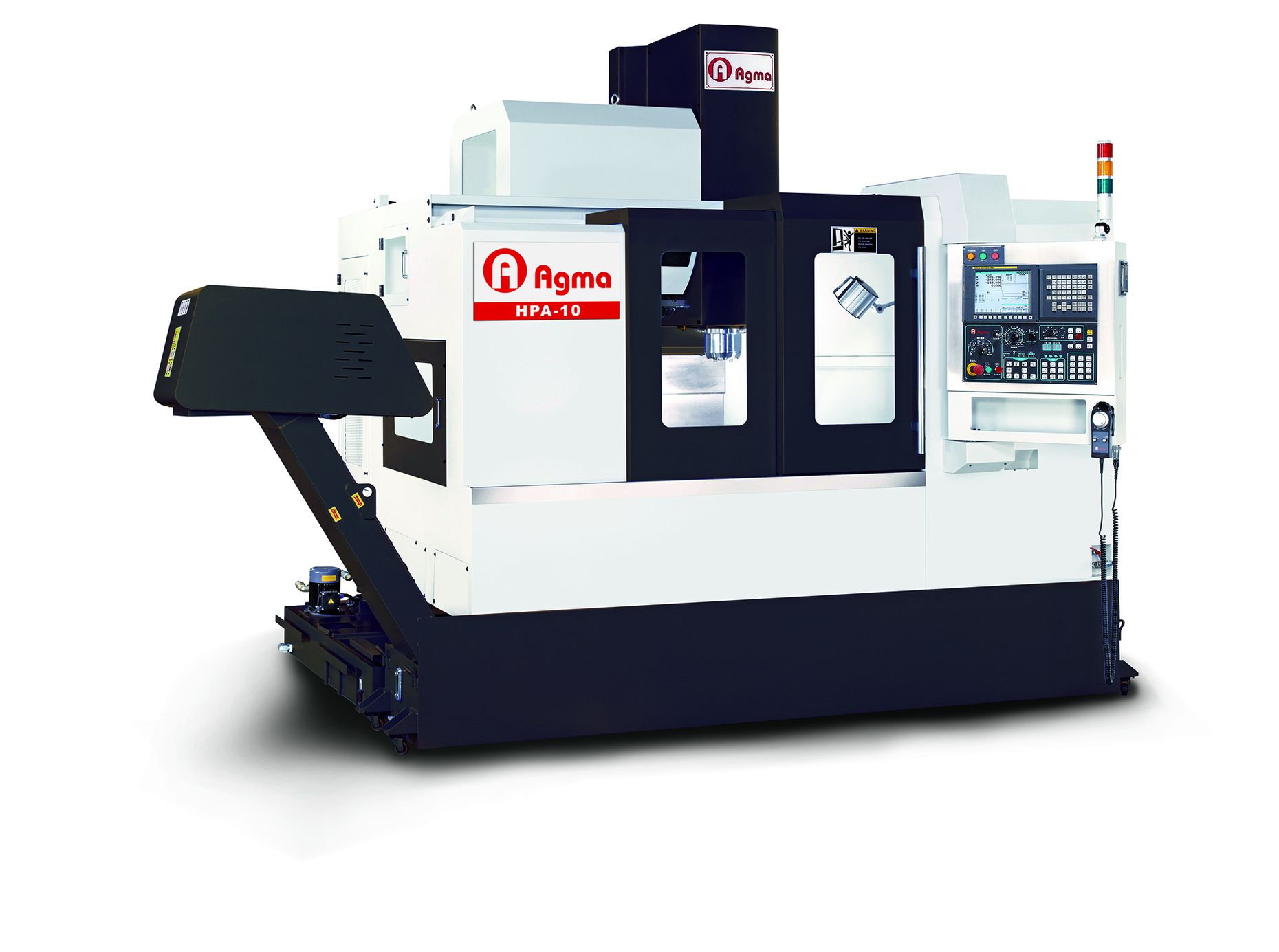

HPA-10 Ultra-High-Speed Vertical Machining Center
Rapidest Cutting Feed rate 30,000mm/min among Taiwan Machine

AGMA once again presents Ultra-High-Speed linear guide ways A series HPA-10
machining center to a foresighted customer like you with industry-leading scraping
technology of hardened box way and the technological capacity of manufacturing
process. Rapidest Cutting Feedrate 30,000mm/min among Taiwanese machines is a
special feature for this model which creates high-efficient and high-stability superiority. This series of machines are based on high-rigidity Meehanite cast iron (FC30) with stress relieved to ensure maximum accuracy and absolute rigidity. Adopt BT-40 Direct Driven15,000rpm spindle as standard, and Direct Driven 10,000/12,000rpm spindle as option. Three axes adopt high precision linear guideways and ball screws. Other optional accessories which fully comply with a variety of cutting demand are also available.

HPA-10
X/Y/Z Traverse 1,020/560/510mm
BT-40 Arm type 24 tools ATC
BT-40 Direct Driven 15,000 rpm (standard)
BT-40 Direct Driven 10,000/12,000 rpm (option)

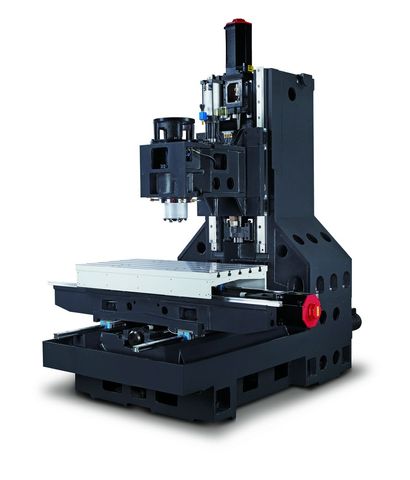

High-Rigidity Structure Design

Synchronously adopt the European & Japanese design
• Wide-span rigid column
• Adopt Japan-made NSK extra-large 35/45/45mm precise roller type linear guide way (for HPA-10).
• X/Y/Z axis adopts high specification direct driven motor and high rigid coupling.
• High quality fully enclosed splash guard, elegant appearance, well-executed and in good taste.

Extra-large X/Y/Z axis motor
4.0/7.0KW 7.0KW (no counter balance design) for HPA-10

Taiwan Made PMI Ø40/40/40mm Hollow Ballscrew with Air Cooling System for HPA-10 is standard.

Extra Wide door design
The width of door reaches 1160mm for conveniently loading   and unloading the fixture and workpiece.

Stable air supply equipment (option)
The gas storage barrel assists to acquire steady air source to increase equipment utility rate.

Chip Conveyor for HPA-10 is standard.
